DABOMB Magnetic Mount Water Bottle

DaBomb bike water bottle combined with FidLock magnetic bracket. This magnetic bracket
licensed by FidLock (Germany), you can find their logo and patent number on it.

It’s special design for ENDURO bike, because ENDURO bike has the middle suspension and
take up lots of space between the top tube and down tube. It’s difficult or
importable to use the standard water cage.

So, this item is released. Look at the video, you can quick take and attach bottle to
the magnetic mount. We have already tested by riders, its strong magnets can
lock securely.

-         Material: PP
-         Temp: -5 degree to 50 degree
-         Capacity: 21oz/600ml
-         Weight: 164g
-         Color: Clear black
-         Made in Taiwan

Where to buy?  (Plz contact sales@hibike.com.tw if haven’t found)
https://www.dabombbike.com/armsdealer.php

Who has the best weapons?
#DaBomb
#MountainBike #MTB #Components

DaBomb 2020 DH Jersey

DaBomb 2020 DH Jersey is now released. We have designed two colors version in sharp contrast to Black (low-toned) and Orange (brightly). You can make the best choice based on your personality.

It made of 100% Polyester, that isn’t easy to wrinkle and shrink, also not easy to moldy and cause allergies.

It has great moisture absorption and perspiration capacity. It’s quick-drying to keep your skin much more comfortable. So you don’t need to worry about the bad smell of perspiration.

Also it’s smooth and soft, with high elasticity that’s suitable for Extreme Sports. We have already tested by riders in competitions. And both of them provided positive feedback!

DaBomb ADVANCE 29er Rim released !!

DaBomb ADVANCE Rim has already released the 29er edition, do you know?

It’s tubeless ready and 35mm width that perfect for aggressive DH and FR riding, btw it suitable for E-bikes also.

The main body is dark black that keep a low profile, and coming with special decal that’s gradient colors in Red to Black.

ADVANCE 29er -
https://www.dabombbike.com/weapon.php?m=d&pid=175&cid=15&f=15

DaBomb Components - "9 to 1" kit install

If you have a multi-speed bike and wanna ride Dirt Jump / BMX, what should you do?
There’s an easy way to solve - “9 to 1” kit.

It included the Cr-moly 16T & 18T sprocket for you choose.
Also included the alloy spacers*2 and lock ring*1 to replace the original sprocket.

This kit can convert a multi-speed bike into a single-speed DJ/Street bike, it's simple to use the original hub with Da Bomb “9 to 1” kit.

Btw, if your hub is 10/11 speed, please attention to add the spacer which coming with original hub normally.

9 to 1 : https://www.dabombbike.com/weapon.php?m=d&pid=54&cid=18&f=18

What special of DaBomb UFO Rear Hub

Our UFO rear hub series are both special design - the grease filling port. You don't need to disassemble, and easy to access for maintaining the ratchet. Can you find out another special function in this video?
I think you should hear that, there's two different sound during operation. If you filling more grease, the sound will be softly. If you filling less grease, the sound will be loudly.
UFO R-142+QR: https://www.dabombbike.com/weapon.php?m=d&pid=164&cid=14&f=14 UFO R-148 BOOST: https://www.dabombbike.com/weapon.php?m=d&pid=165&cid=14&f=14 UFO R-150/157: https://www.dabombbike.com/weapon.php?m=d&pid=166&cid=14&f=14

BUNKER 2 - Fork Mudguard + Down Tube Mudguard

OMG, carbon frame is pretty expensive.

Would you also feel hurt when your carbon frame get hurt?

So, would you like to protect its if only need a little cost?

What're you waiting for? GoGoGo~

BUNKER 2 - Fork Mudguard (2 sizes)+ Down Tube Mudguard

https://www.dabombbike.com/weapon.php?m=d&pid=172&cid=19&f=19

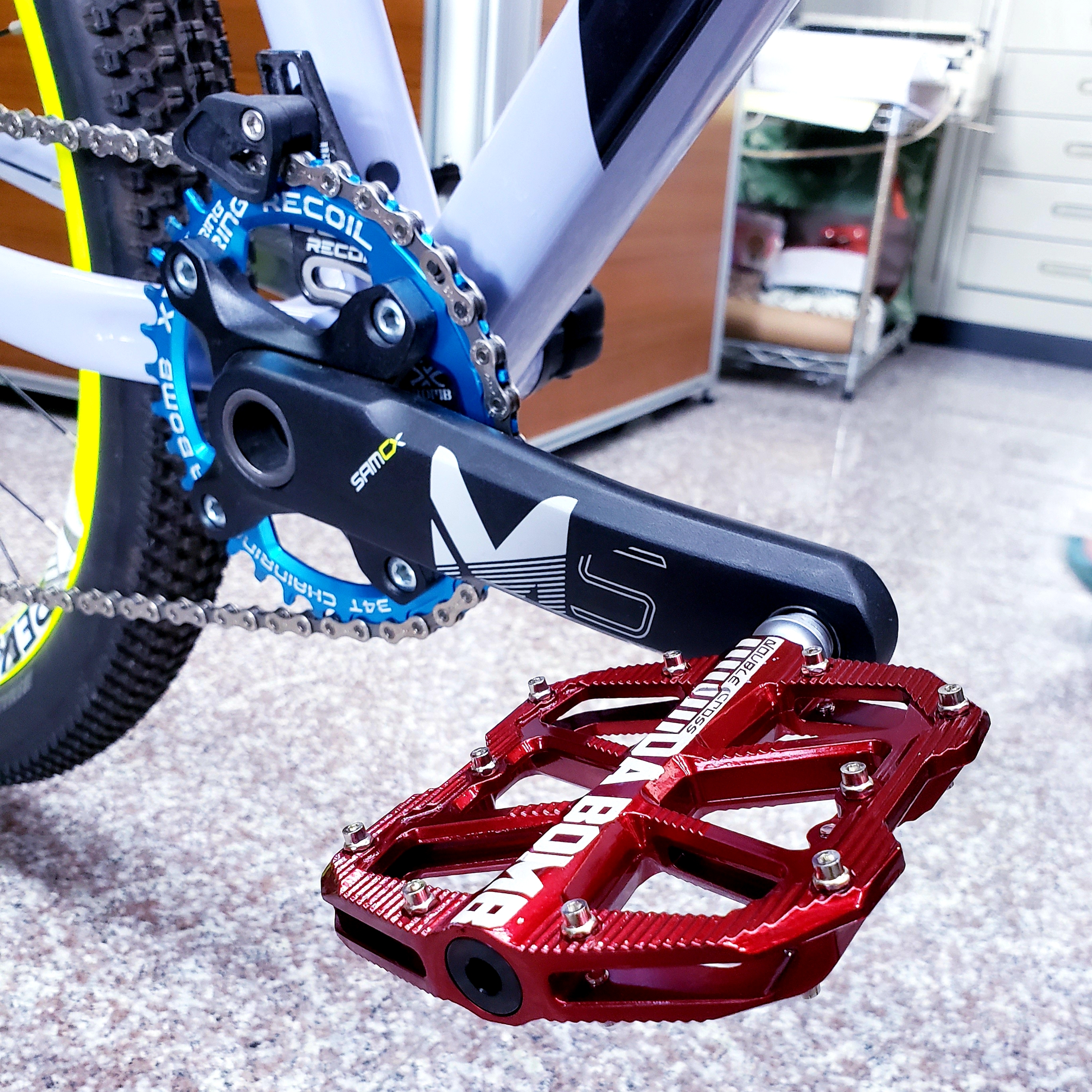

PEDAL - DOUBLE CROSS

There’s our new pedal –DOUBLE CROSS, available in three colors - Black, Blue, Red.

It made of Alloy 6061-T6. The platform size is 112*110mm, and this wider platform is slightly concave in surface that provides give maximum support.

Coming with the replaceable cylindrical pins, can provide great traction and grip, but also decrease the risk to get hurt.

It included the LSL bushing and sealed bearing. And the axle made of high strength Cr-Mo with heat treated and CNC machined.

Btw, please look clearly on its platform, does it seem like the CNC machined?

The answer is Dia-casting. You can use Dia-casting pedal’s price, but purchase the similar CNC pedal. Why not haha?

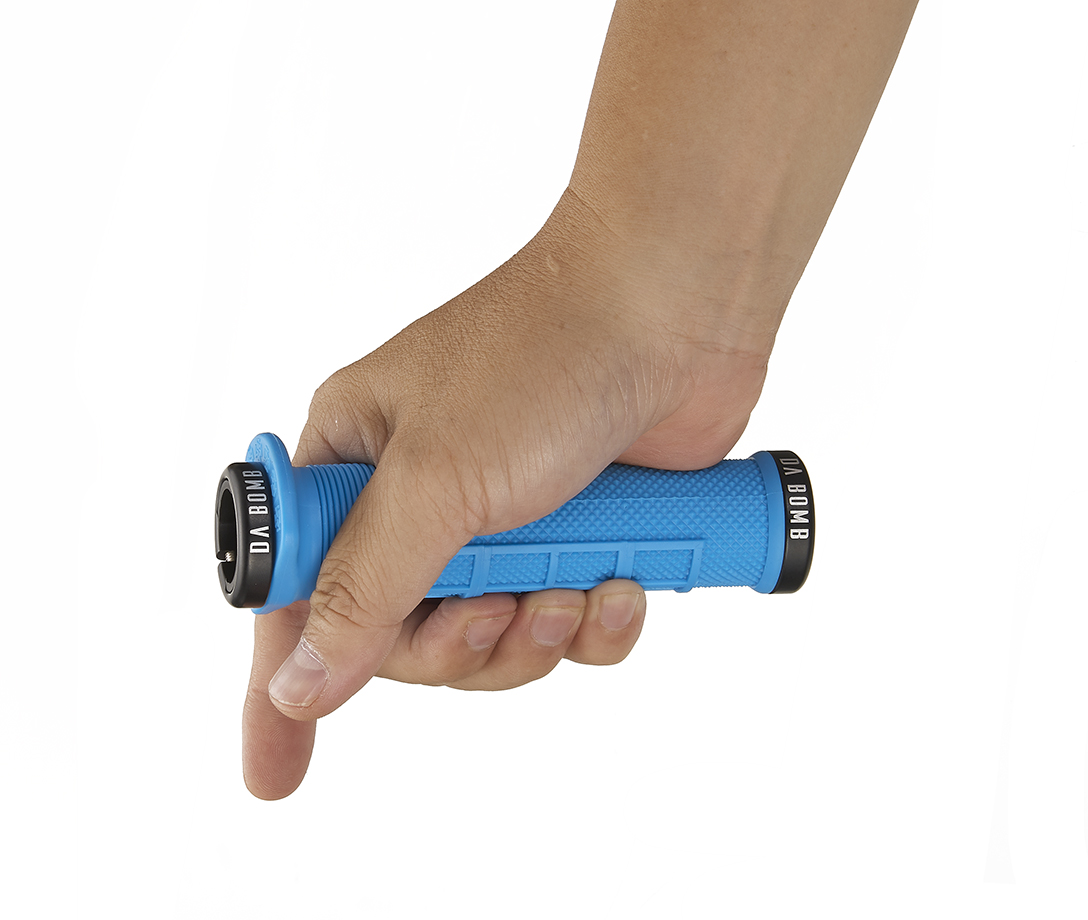

GRIP - HOLY SHIT 3.0

There’s our new grip – Holy Shit 3.0

Ah? I heard someone doubted the item name. That’s true haha.

Did you think the normal flange design inconvenient for shift lever control? Blocking your hand, but also blocking your fingers.

If so, our new grip should be suitable for you. Its half-flange design can block your hand, but there’s a gap for you to action your fingers which perfect for shift lever control.

It also used two-pattern design, which the front side can control smoothly, another side can provide perfect traction. It’s coming with double lock-ring and rubber end plugs.

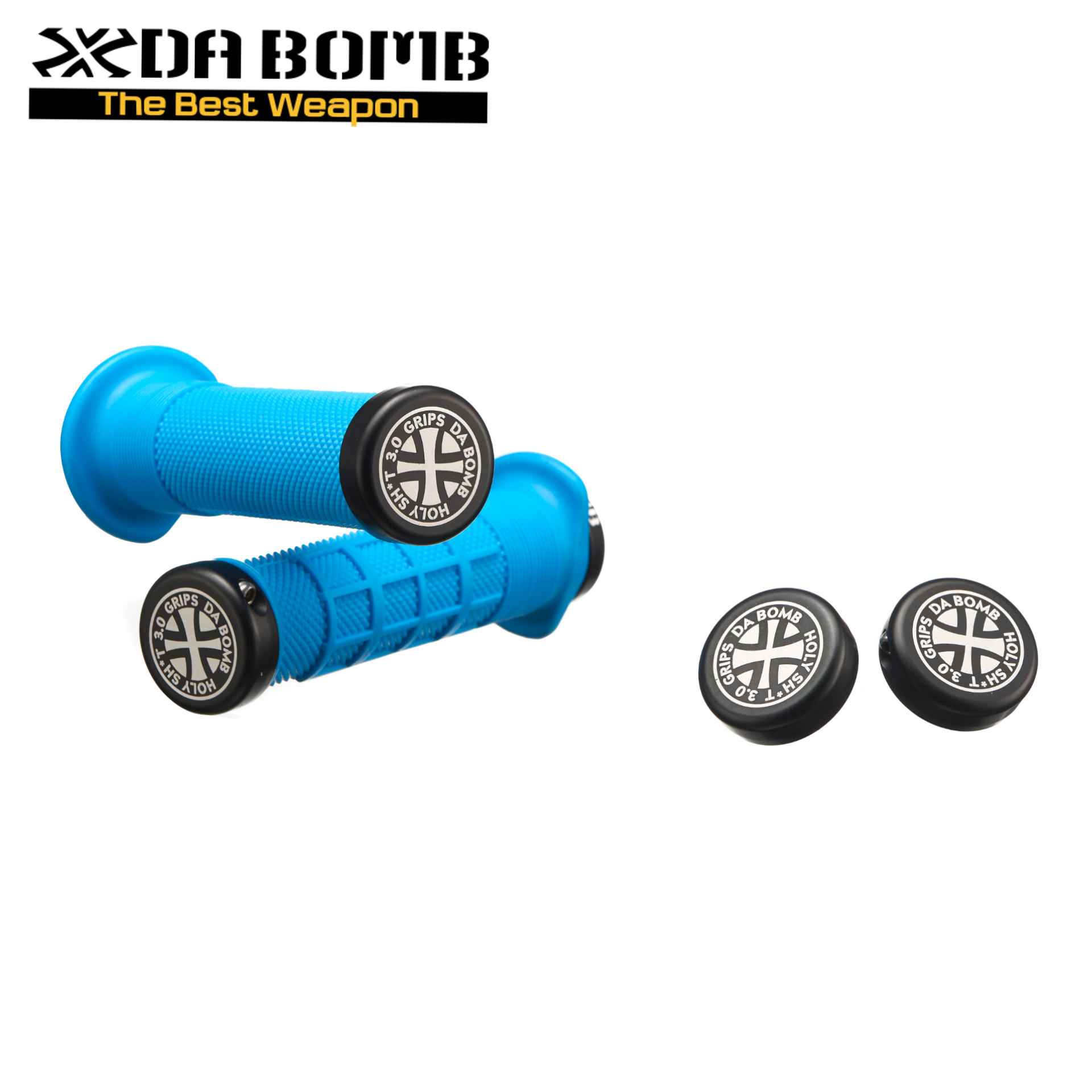

Btw, we have an optional bar end cap “CROSS SHIELD” for your reference. It made of aluminum and laser etched DaBomb logo. It’s compatible with all DaBomb Lock-On series Grips, also easy to replace the original and install. Importantly, it can provide much more protection from crashes or impacts. So you can throw your bike anywhere(?)

STEM - RIFLE GRENADE

There’s new stem – RIFLE GRENADE.
It’s a top load 2 pieces stem, barbore 35mm, and two colors matching which is the matt-black bottom combined with 4 anodized color top cover – Black, Red, Brown, Blue.

It made of Alloy 6061 with Full CNC Machined. The unique cutout shape can reduce the maximum weight possible, but also maintaining maximum strength.

Please attention to install this stem,
1.      Tighten 2 middle screws first, to avoid the top cover leans slightly.
2.      Tighten 2 front screws later, to fix the handlebar
3.      Tighten 2 rear screws finally, to fix the head tube

Detail:
• Material: Alloy 6061-T6, Full CNC machined
• Ext. 45mm
• BarBore: 35mm
• Angle: ±0 degree
• Weight:149g
• Color available: Black, Blue, Red, Brown

X-ORBIT (Oval ChainRing)

Oval Chain Ring has already appeared a long times. Have you tried it before?

Oval Chain Ring can improve the feel and smoothness of pedaling,

using for minimizing the “dead spot” in the pedal stroke.

Specially pedaling in 180 degree and 270 degree,

it can reduce the knees loading, and be friendly with your knees.

Narrow wide tooth design throw out chain drop with the prefect chain mesh fit.

And it's suitable for all cranks with 104 BCD interface to improve traction and climbing abilities,

that optimize your pedaling power.

It’s the best design basic on biomechanics.

Actually, you will need to spend some time to adjust and adapt.

Then, you will find that, cycling can be more relax and faster.

Maybe you can give some feedback to us.

= - = - = - = - = - = - = - = -= - = - = - =

Detail:

●Material: AL7075-T6 CNC machined with anodized colors

●Available size: 34T, 36T

●BCD: 104mm

●Available color: Black, Red, Purple

●Weight: 51g(34T), 59g(36T)

SADDLE - MOTION

Open channel design provides not only lightweight but also the blood flow and pressure relief for loner riding. It also can adequately ventilate that keeping clear and fresh. So it can be effective to reduce the pressure from perineum/prostate for longevity and all-day riding efficiency.

The wider width and a shorter nose saddle supports the sit bones and less some rubbing on inner thighs. Also, the airfoam material with better flexible can be more suitable for comfort riding.

An uncomfortable bike saddle will affect your cycling experience directly, and lead to long term injuries as well as possible. So, do you know how to choose now?

= - = - = - = - = - = - = - = -= - = - = - =

Detail

• Material: Padding fill in by airfoam

• 7mm Cr-Mo black rail

• Size: 242mmx145mm

• Available colors : Black, white, red, yellow

• Weight: 256g

HANDLEBAR - STINGER MISSILE

In the past, the DH / Enduro barbore was 31.8mm. But now the mainstream is changed to 35mm, because it can be more durable if it becomes thicker. 35mm barbore design keep strong and stiff for DownHill and Enduro riding.

Also, special geometry with 20mm rise, 9° backsweep and 5° upsweep has cozy riding for riders.

The wide bar can provide more responsive steering and more confidence in corners and across huge terrain for riders. So 800mm width will be better for aggressive trail riding.

= - = - = - = - = - = - = - = -= - = - = - =

Detail

• Material: AL6061

• Bar bore: 35mm

• Bar rise: 20mm

• Backsweep:9°

• Upsweep: 5°

• Width: 800mm

• Weight: 380g

• Available colors: Grey, Brown, Neon Yellow

COMPRESSION PLUG for head set

• Instead of star washer, it would be sure use unlimited
• Easy to assemble
• Avoid breaking the inner tube of carbon steerer forks
• The longer length 52mm keeps more strength

Spec.

Material: AL6061-T6

Size: 1-1/8" , fork tube ID22-25.4mm

Body length: 52mm

Weight: 64g

Color available: Black

PARTICLE grip

• New diamond knurl pattern improves grip and gives the superior confort
• Da Bomb embossed logo
• Single clamp lock-on design and reinforced soft ends

Spec.:

Material: Rubber compound slip-free pattern knobs

Length: 135mm

ID: 22.5mm

Weight: 110g

Color available: Black, red, neon yellow

ADV 275 - carbon frame

• Full carbon 27.5/27.5+/29er Enduro frame
• Invisible VPP linkage design with 5.9" suspension travel
• Drive side York with stainless protector
• Rockshox Trunnion mount
• Internal cable routing

Spec.

Size: 17" & 19", tapered 1.5" head tube

Travel: 5.9"

Shock: Rock Shox RS-SUPER DELUXE RC3 L205*TR60

Seat post: 30.9mm

BB width: 73mm

Rear dropout: 148mm*12mm (included rear axle)

Weight: 3094g (With shock)

Color: Black

Bunker Buster 27.5" - DH carbon frame

• Concentric BB pivot, 4 bar linkage design with 8.5" suspension travel
• Over size head tube design
• Double-crown fork rubber protector on both sides of the down tube, plastic protector on down tube for stones and rocks would impact protection
• Rear suspension protection fender
• Integrated ISCG-05 mount



Spec. :

Size: M & L , oversize ID49.5mm head tube

Travel: 8.5"

Shock: X-Fusion VECTOR AIR HLR L240*TR76

Seat post: 30.9mm

BB width: 83mm

Reat dropout: 150*12mm (included rear axle)

Weight: 4710g (with shock)

Color available: Black/yellow
